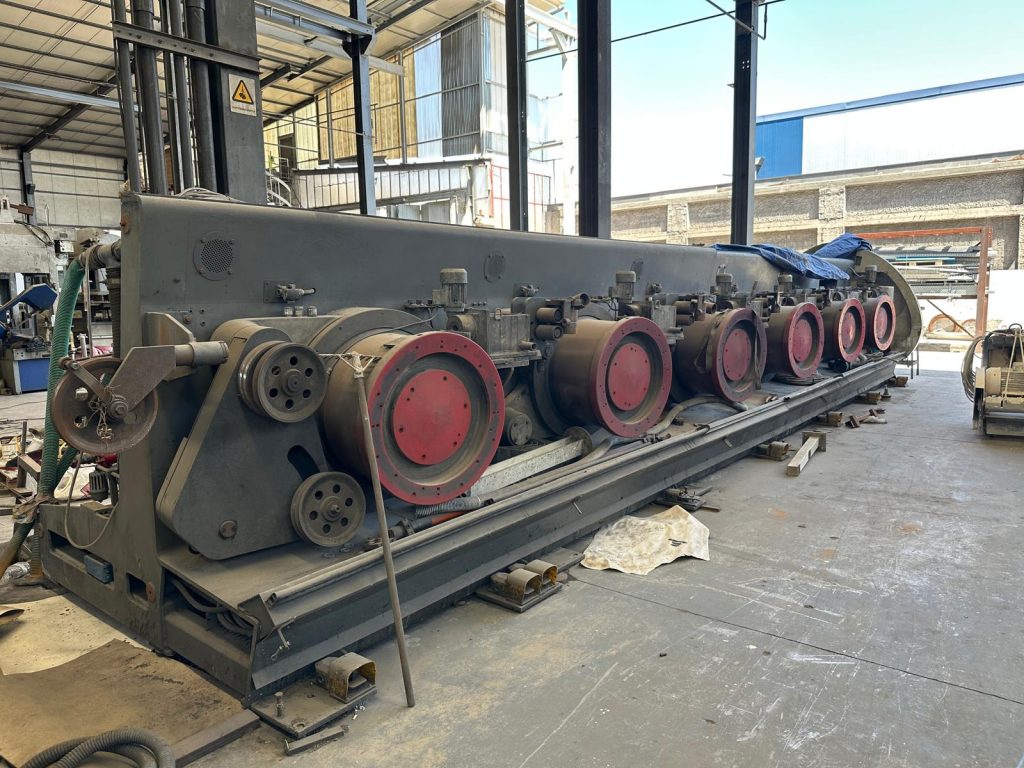

Drawing Machinery, Rod

#99D-5278  Vaughn 4HRX Motoblox; max. inlet: .437″ approx; last drawing: .375″; finish: .220″; (4) 30″ x 60/75 HP DC motors; speed: 277/1200 FPM; finish block with stripper – air & water cooled blocks; Burton/Mentor electrical controls; 300 KVA dry type transformer

#99D-5312  MILL Model 2xTV-22/2+2xTV-13/2+TV-13/R Wire Drawing Machine; blocks 1 + 2 double deck OTO blocks 3 + 4 double block accumulator; block 5 finish; block/capstans 550mm (22″); blocks 1+2: 60HP; blocks 3-4-5: 30HP; max. inlet: 7mm; max. speed: 11M/sec (2200FPM); motors V-belt drive; die boxes water cooled

#99D-5329  Jiangyin JinLiDa 9-Block Wire Drawing Machine; Model LZ1500.2-4-560+5+SGL1000; Block diameters 1-4: 560mm, 5-9: 500mm; Block 1: 30KW AC motor, blocks 2-9: 22KW AC motors; power voltage: AC380V-50Hz-3ph; max. wire dia. start: 5.5mm (.216″); finish: 1.55mm (.061″); medium and low carbon; max. speed: 13 M/sec.; air & water cooled blocks; vertical spooler: spool dia. 40″; new 2007; never installed; like new

SOLD – #99D-5343  2012 Mekosan Model MKS630 Wire Drawing Line    –    SOLD

Click here to view video: https://www.youtube.com/watch?v=KsUyCOBwqcw

#99D-5355  Eurodraw MTB460/7 Wire Drawing Machine; low carbon steel wire; 7 blocks; 460mm block dia.; drawing range: inlet: 5.50mm max., outlet: 1.60-4.80mm; max. pull on 1st draft: 800kg; final drawing speed: 15m/sec.; main D.C. motor power: 7 x 33.6kW, 1620 RPM; Supply voltage: 415V – 50 Hz – 3 phase; Take-up: ROT 560 coiler

SOLD – #99D-5361  Frigerio 10-block Wire/Rod Drawing Line; rod inlet: 7/16″ (.437″) (11.11mm); wire outlet: .086″-.172″ (2.0 to 4.5mm) high carbon material; Blocks 1-5: 36″(900mm) x 105 HP AC per block; Blocks 6-10: 30″ (760mm) x 105 HP AC per block; Block 10: vertical stripper; take-up units: deadblock coiler: 30″ x 105 HP AC motor; horizontal spooler; 50″ x 37″ (1250 x 950mm) traverse x 58 HP AC motor; Speed: 1000 FPM @ larger wire dia. .172″; Siemens S-7 300 PLC’s; E.E.I. electrical control cabinets; E.E.I. video keyboard – operators pulpit; 460V-3ph-60Hz; misc. spare parts.    SOLD

#99D-5379  Frigerio Model RT760.7 Wire Drawing Line; 7x760mm blocks; 7x110KW DC motors; low-medium carbon; stainless steel; max. inlet: 10mm-6.5-5.5mm; outlet: 1.7-1.5-1.3mm approx.; air & water cooled blocks; max. speed: 15M/sec.; dancer unit + DIN800 horizontal spooler; CSI electricals; power: 380V-3ph-50cycle

#99D-5388  WWM Model RT560.4 Wire Drawing Line; wire dia. start: 5.5-6.0mm; block dia.: 560mm (22″); payoff tower; descaler; wire drawer; vertical spooler, spooler 1250mm spools; Sei Sistemi electrical AC

#99D-5393 (c/r #99A-5394)  GCR Eurodraw MTS-900 2-block Rod Breakdown Machine with inverted drawing bullblock coiler; year of mfg: 2011; max. inlet: .531″; finish rod size: 0.200″-0.360″; horiz. Meccanica coil payoff RP6000; MicroWeld HX butt welder .125″-.750″ steel rod; hand held power shear; Fenn 4F 4-die swager; 2-block rod drawing machine-block dia. 900mm (36″)


#99D-5396  Kistner Type GV16/4 Cold Rolling Line; yr : 2006;  Line consisting of: – Wire rod payoff; – Loop detector; – Mechanical descaler; – Wire lubricant application device; – 4-block straight in drawing machine; – Spooler: (pulling speed: 8,5m/sec, spool flange dia.: 1250mm, spool core:  620mm, spool slot width:  800mm, drive: 18,5KW).  Inlet wire  dia: ø5,5-ø8,5 mm  (.216”-.334”), finished wire dia: ø3,2 -ø8,0 mm  (.125”-.312”);  4 x 24” blocks x 50 HP AC motors; 380V-50 cycle -3ph; Drawing speed at block 4:  up to 8,5 m/sec.  (1700 FPM)

#99D-5397  Kistner Type GV16/3 Cold Rolling Line; yr : 2008;  Line consisting of: – Wire rod payoff; – Loop detector; – Mechanical descaler; – Wire lubricant application device; – 3-block straight in drawing machine; – Spooler: (pulling speed: 8,5m/sec, spool flange dia.: 1250mm, spool core:  620mm, spool slot width:  800mm, drive: 18,5KW).  Inlet wire  dia: ø5,5-ø8,5 mm  (.216”-.334”), finished wire dia: ø3,8 -ø8,0 mm  (.149”-.312”);  3 x 24” blocks x 50 HP AC motors; 380V-50 cycle -3ph; Drawing speed at block 3:  up to 7m/sec.  (1400 FPM)

#99D-5399 Frigerio Model RT 560/10 Wire Drawing Line; 10 block & die, 560mm blocks (22″); Motor (7) blocks 46 kw (61.69 HP) DC- (3) blocks 37 kw (50 HP ) AC;  380-400V, 50 HZ;  max. inlet dia. start 7.0 mm – 5.5 mm (.275″-.216″); Finish wire dia. 4.0 – 1.3 mm (.157″ – .051″); Speed 2.0 – 23.0 m/sec (400-4600 FPM) ; Static coiler with inverted block, 59 KW (80 HP); Horizontal rod payoffs; mechanical descaler, electrical controls

#99D-5413 Ernst Koch KGT25/10 10-Block Drawing Machine with Model KEW IV Static Coiler; inlet tensile strength: 400-500N/mm2; inlet dia. range: 7.7-2.7mm; outlet dia. range: 5.6-1.6mm; block diameters: 630mm(24.8″); 45kW AC per block (60HP); speed: 10M/sec (2000 FPM); KEW IV Static Coiler: 600mm(24.6″) block; 30 kW AC (40HP AC); KP700 operator panel; Siemens S7 400 controls; payoff system; dust collecting system; 400V, 60 Hz-3ph; mfg. year: 2016

#99D-5428 Team Meccanica Model 760.3+610.5 Wire Drawing Line; 8 block – 8 die; high + low carbon; max. wire dia. 10mm low carbon; 6.5mm high carbon; finish-exit: 1.6mm; block diameters: 1-3: 760mm, 4-8: 610mm; 8 x 57.4 kW (77HP) DC motors; dual payoff; mechanical descaler; EEI DC drives; horizontal spooler: 1500 Kg

#99D-5429  Temeca Wire Drawing Line; Type: TV-22/TV16 + TRSO600; 8 block / 8 die + coiler w/die; Straight wire with sensor arm; Motors DC: 55kw w/ drivers; Range high carbon: 5.50 –> 1.60 // 7.00 –> 2.00mm; Max. speed: 12m/seg; Year 1995

AVAILABLE AT ADDITIONAL COST:  HORIZONTAL SPOOLERS; Make: TEUREMA; Type: EHS-110; Max. spool dia.: 1050mm; Motor 60/70 HP; Year 1991; 2 units available  (Ref. #633C-2103) (Under category “Coilers, Spoolers, Winders”)

#99D-5430 Marshall Richards Hi Draw Wire Drawing Machine; OTO Style; 8 x 22″ blocks; Blocks 1 through 8: 40 HP AC; drawing deadblock coiler: 22″ and 26″ blocks; 30 HP AC motor, 460V, 1780 RPM, AC drives; water cooled dies; air cooled blocks; max. wire enter: .250″; min.-max. wire exit: .080″-.162″; 2000 FPM approx.

#99D-5431  Frigerio Model 560/7 Wire Drawing Machine;  7 x 560mm blocks, 7 Die, 7 x 51.6 KW DC motors; max. inlet: 6.5mm; drawing 80c high carbon wire; speed: 8/mts; EEI DC drives; 400V, 50 HZ; dual rod flipper arm payoff; 36″ horizontal spooler, dance control unit

#99D-5433  Eurodraw Rod Breakdown Machine, Model 900.7; (7) seven 900mm blocks; water cooled blocks; motor power: 110 KW AC , 400V-50hz; maximum inlet wire: 13.00mm; final wire diameter: 5.0mm; carbon content: C% 80; inlet wire speed: 0.59m/sec; final speed: 4.0m/sec; fractional production per hour (80% eff.) KG 1774; Eurodraw 3 ton horizontal spooler, spool Din 1250 mm; AC electrical drives

SOLD – #99D-5434 Frigerio Model S630/13 Sensor Wire Drawing Line, Year 2010/11; 13 x 630mm (25″) blocks; 13 x 31 KW AC (41.6 HP) motor drives; high carbon: max carbon content: .085% , 1085; inlet: 5.512mm (.217″); outlet: 1.295mm (.051″); speed: 20 mts/sec. (4,000 FPM);  running hours: 4728; worked hours: 2579; twin vertical spooler model BVD80, spool dia. 800mm (31.5″);  payoff tower model SNR30; Siemens Simovert masterdrives VC; PLC Siemens S7-300 SOLD


SOLD – #99D-5435  Frigerio Model S710/7 Wire Drawing Line; year 2010-2011; running hours: 4,728, work hours 883; 7 X 710mm (28″) blocks; 7 X 67 KW AC (89.84 HP) motor; speed: 25 mts/sec. (5,000 FPM); inlet dia. min./max. 5.5mm – 9.5mm (.217″-.374″); outlet dia. min./max. 2.05mm – 4.11mm (.080″ – .162″); high carbon inlet : 5.5mm – 9.5mm ; outlet: 2.50mm-3.2mm (.100″ – .126″);  deadblock coiler model AOS60, block dia.: 600mm (24″) 25 KW (33.5 HP) ; Siemens Simovert master drives VC; PLC Siemens S7-300; twin rod payoff model SN30 SOLD

#99C-5438 (c/r#99D-5439)  Ernst Koch Model KGT-600/4 Wire Drawing Machine; drawing range input: 3.1-0.85mm; output: 2.2-0.6mm; 4 block/die; blocks 1-3: 400mm, block 4: 300-400-500mm; drawing speed: 15M/sec; motors: 4 x 20.8kW, high torque synchronous motors; Spooler model KHS-460/800
