Drawing Machinery, Fine Wire

#99B-5235 M+E (Italy) Model NG12 + SP900 Wire Drawing and Spooling Line; 12 die wet draw; 2 cone; start-inlet: .098″ (2.5mm) to .133″ (63.429mm), finish-outlet: .045″-.070″ (1.143-1.7778mm); 90KW AC Motor (120HP); M+E SP900 32″ Spooler, spool size: 910mm + 760mm; 18″ traverse; 34.5 KW AC motor (46HP); dancer payoff tower units; inline oil mist coater; Siemens Micro Master 440 PLC electrical controls; panel mfg. SCS static control systems (Italy); 460V-3ph-60 cycle; new 2006; 1 line avail

#99B-5300  Herborn Model FV1-14 Superfine Wire Drawer; 14 draft; last drawing non-ferrous precious metals: suitable for copper, also ferrous nickle alloy & S.S.; start .004″; finish .002-.0007″ (depending on draft set-up); normal drawing speed: 2400 FPM up to 4000 FPM; 1-1/2HP Adjusto speed motor; built in spooler: 2-1/2″ dia. x 3″ trav. x .700″ bore; electrical controls; ceramic cones
#99B-5362 Eurodraw GCR Model TB4 Wet Draw Machine; 4-cone, 21 die; input: 0.8mm-1.70mm(.031″-.066″); 14.50% area reduction; 18 meters/sec.; submerged tank; power: 36.1 kW DC: 190-440V; supply power: 380V-50cycle-3ph; spooler
#99B-5363  Eurodraw Model TCOSW24/6+1 Fine Wet Drawing Machine; number of passes: 25; number of cones: 6; wire alloy: low-high carbon: nickel-copper brass alloys; inlet wire max.: 1.40mm hi carbon (.055″); 1.60mm low carbon (.062″); outlet wire: from 0.50 to 0.08mm (.019″-.003″); max. speed: 20M/sec. (4000 FPM); 13.5% area reduction 1st 16 dies; 17.5 KW AC motor; lubrication recirculation; Spooler: BSW400

#99B-5371  Koch 25-Die KTZ Fine Wire Drawing Machine; dual (2) wire drawing capacity; Steel wire; 25 Die; Wire Diameters: Input: Min.-max. 1.2-1.37 mm( .047″-.053″), Output: Min.-max. 0.17-0.35mm(.006″ – 0.013″); 3000 FPM; Ceramic cone rings (Kyocera Brand); 60 Hp motor, 440V, 3 ph., 60 Hz., 27 amps; Automation Directs Drives; (2) two spoolers per machine; 30″ spooler payoffs

12 available

#99B-5372  Koch 21-Die KTZ Fine Wire Drawing Machine; dual (2) wire drawing capacity; Steel wire; 21 Die; Wire Diameters: Input: Min.-max. 1.2-1.37 mm( .047″-.053″), Output: Min.-max. 0.17-0.35mm(.006″ – 0.013″); 3000 FPM; Ceramic cone rings (Kyocera Brand); 40 Hp motor, 440V, 3 ph., 60 Hz., 21 amps; Automation Directs Drives; (2) two spoolers per machine; 30″ spooler payoffs

12 available

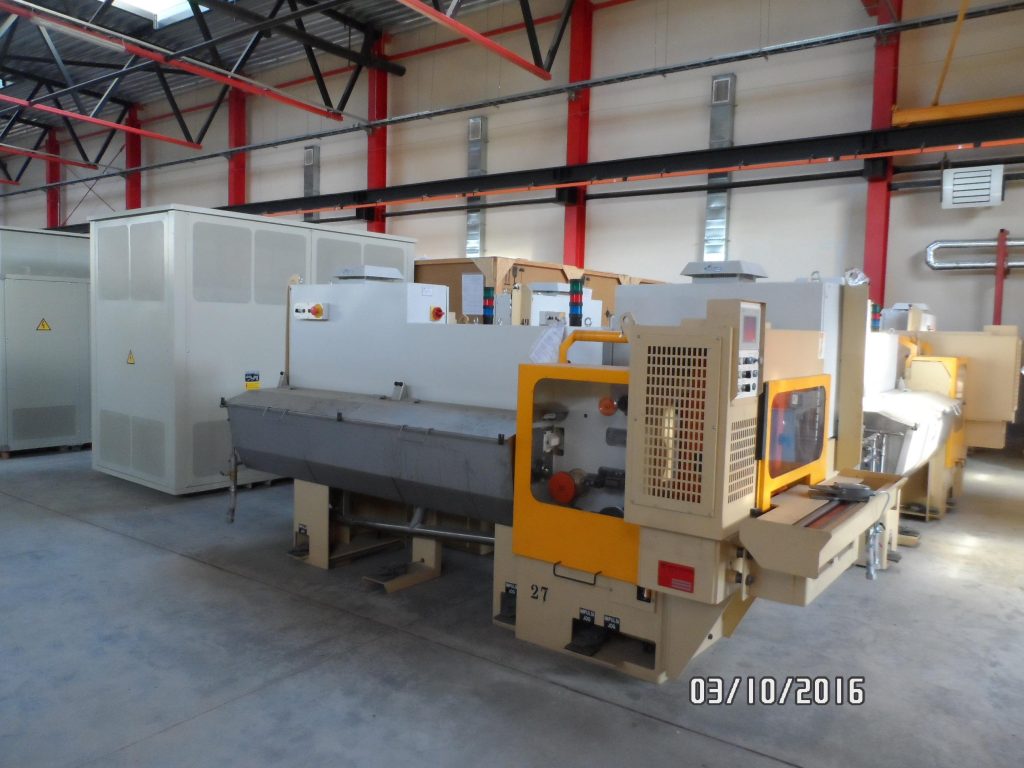

#99B-5375 FRIGERIO Model LSD25 WET DRAWING MACHINE (Large inventory); Material:  high carbon brass coated steel wire; Drawing range: inlet range: 0,65 – 1,0 mm, outlet range: 0,10 – 0,14mm; Tensile strength: inlet max.: 1.320 MPa, outlet max.: 4.150 MPa; Number of passes: 25, Number of cones: three pairs: 3 x 2; Cone diam. with final capstan; Drawing speed max.:  18,0 m/s; Drive motors:  AC motors; Main Motor: Nominal power (for 97 machines): 15 kW, Nominal power (for 97 machines): 11 kW.  HORIZONTAL SELF TRAVERSING SPOOLER model BT315; Wire range: diameter: 0,10-0,14mm; Spool’s Dimensions: Flange:  Spool A: 315mm, Spool B*: 255mm, Spool C*: 288mm, Spool D*: 250mm.  MARIO FRIGERIO AUTOMATION DRIVES AND CONTROLS, PLC Siemens S7.  MOTORIZED SPOOL PAY-OFF for model SDM112; Material: high carbon brass coated steel wire, Wire range:  0,65 – 1,0 mm; Tensile strength:  max. 1.350 N/mm2; Spool’s dimensions: Flange:  1.150mm

#99B-5376  M+E (ITALY) MODEL NMG25 FINE WIRE WET DRAWING MACHINES; (Large Inventory); Wire drawing and drawing of brass high carbon steel wire; Wire diameter entry – exit; min-max.: 1.26mm to 0.220mm; 1.01mm to 0.175mm; 0.98mm to .160mm; 0.92mm to .140mm; 0.70mm to .100mm; 0.58mm to .080mm; Number of passes/die:  25; Number of cones:  4; Main motor power:  22 kW AC.  M+E SPOOLER, Model SP350; Motor power:  11 kW AC; Flange:  315mm; Traverse:  156mm; Bore: 150mm; Electricals: 400V – 50 cycle – 3 phase
